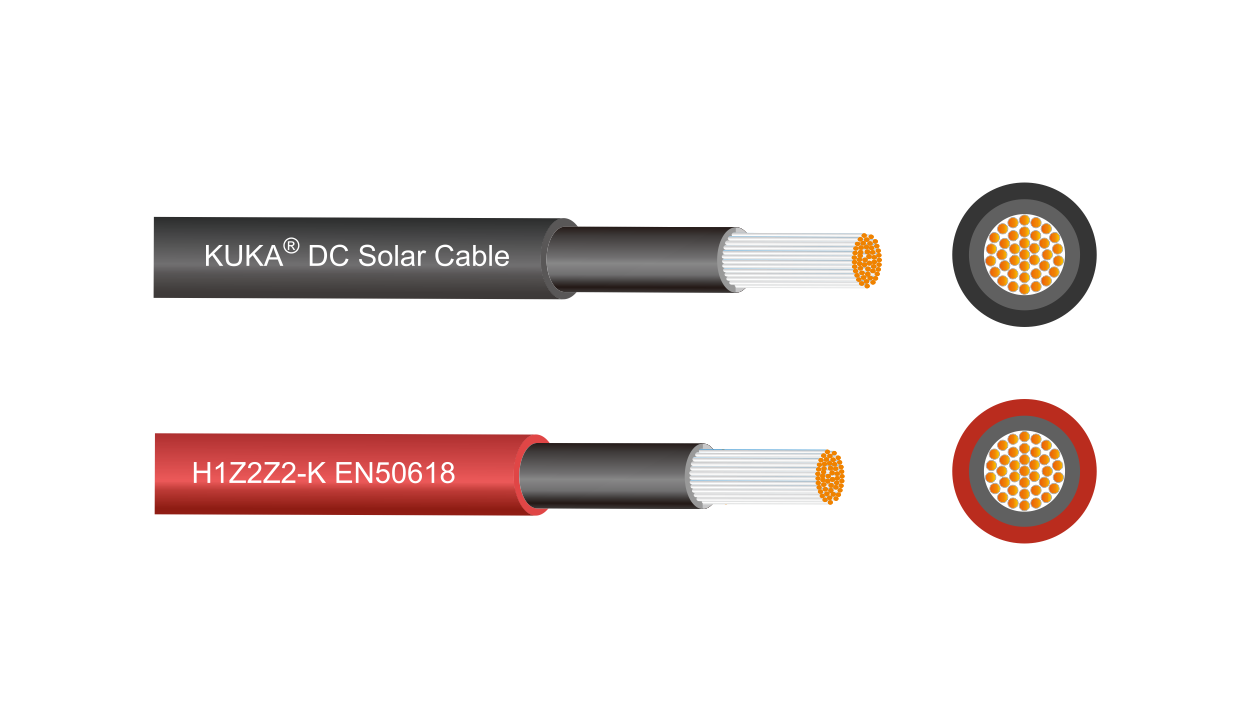

4mm H1Z2Z2K TUV 1500V

For photovoltaic power Direct Current (DC)

Product Details

Brand:
Kuka Cable
SKU:
Solar Cables
Description:
    • Minimum Bending Radius: Fixed: 4 x Overall Diameter; Flexing: 5 x Overall Diameter
    • Temperature Range: -40 °C to +90 °C, Max. temp. at conductor +120 °C
    • Weather / UV Resistance: EN 50289-4-17
    • Ozone Resistance: EN 50396, cl. 8.1.3
    • Halogen Free: EN 60754-1
    • Short Circuit Temperature: 250°C for 5 s
    • Flame-resistant Test: EN 60332-1-2
    • Anticipated Service Life: 30 years
    • Approvals: EN50618 H1Z2Z2-K & IEC62930
Additional Information:

  • Conductor: Class 5 flexible tinned copper, acc. to DIN VDE 0295 / IEC EN 60228
  • Size: 4mm²
  • Stranding: 56*0.285 ± 0.005mm
  • Color (1st): Black
  • Thickness (2nd): 0.8mm ± 0.04mm
  • Color (2nd): Black or Red
  • Stranding Diameter: 2.6mm ± 0.04mm
  • Insulation Thickness: 0.7mm ± 0.04mm
  • Outer Diameter: 5.6mm ± 0.2mm
