GT Series
100-125kW | Three Phase | 8/10 MPPTs
Product Details
- 21A DC input current per string
- 8/10 MPPTs, max. Efficiency 99.0%
- 150% DC input oversizing & 110% AC output overloading
- No derating at 45ºC
- String level monitoring
- Remote or onsite upgrade supported
- Type II SPD on AC & DC sides
- IP66 and optional C5 protection1
- Optional AFCI protection1
- Lightweight design and high power density for easy installation
- Easy & quick replacement of fan
- Fuse free design

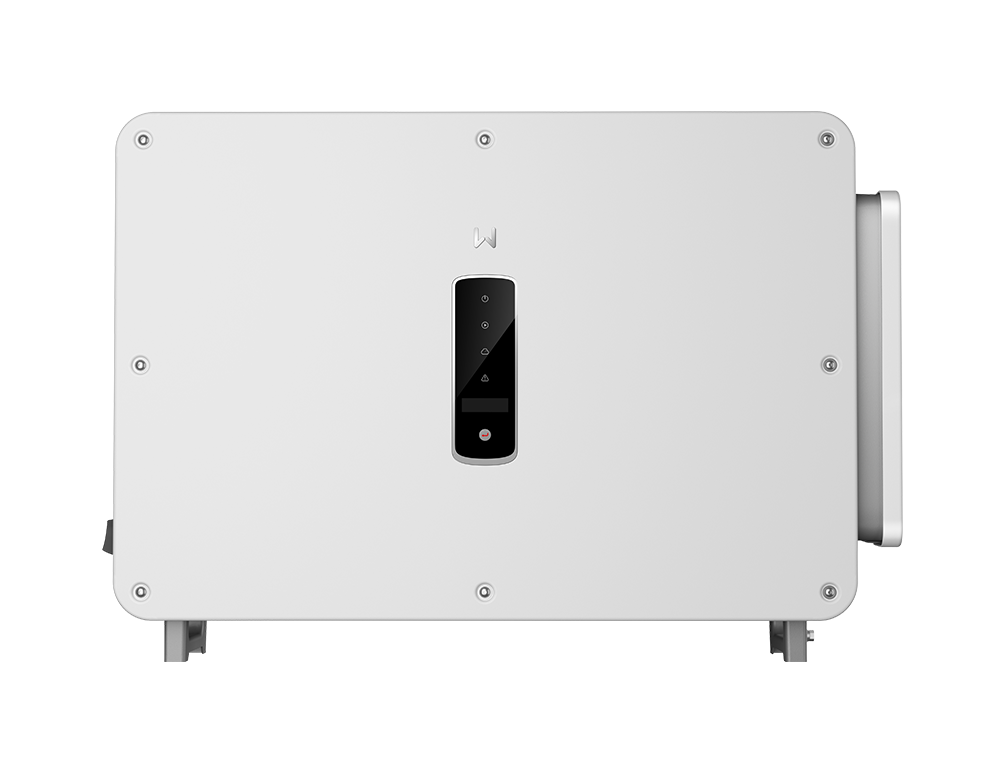

The GT Series string inverter is an ideal choice for commercial and industrial (C&I) applications to enhance productivity and realize high power density. Multiple MPPTs and high input current of 21A per DC string increase the overall yield with high-power PV modules. The optional PID (Potential Induced Degradation) recovery function is also supported for better module performance. Safety is always the first priority. Both the DC and AC sides are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With an unrivaled set of features, GT Series inverters were conceived to deliver increased return on investment (ROI) for C&I PV projects.
